Johnson Electric group small motor sourcing

Micro-motors and actuators sized to your duty cycle, not just your drawing.

Johnson Electric brushed DC, BLDC, stepper and linear actuator platforms help automotive comfort, medical device and appliance OEM teams match torque-speed curves from 4 mm to 80 mm packages with IATF 16949 and ISO 13485 documentation.

Request Quote Download Catalog

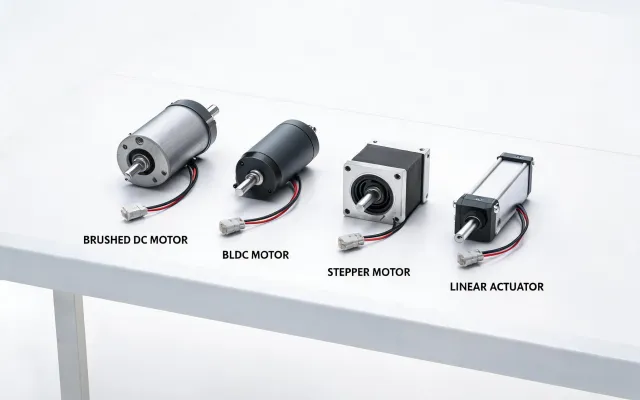

Johnson Electric micro motor and actuator product family
Specified by Major Automotive OEM Medical Device Manufacturer Home Appliance Group Robotics Integrator HVAC Actuator OEM Mobility Seating Supplier Pump Module Builder Personal Care Device OEM
Selection questions

Start with the duty point your engineer already knows.

Use these common filters before requesting samples, then our spec desk can confirm winding, gearhead, encoder and actuator options.

Rated torque in mNm or Ncm, target rpm, voltage, expected duty cycle, peak stall event, ambient temperature and noise limit allow a useful brushed DC or BLDC shortlist within one review cycle.

Yes. Linear actuators are checked as an assembly: motor curve, screw pitch, gear reduction, limit switch logic and expected axial load. That prevents a motor-only selection that fails thermal rise after 30 minutes.

Typical packs include ISO 9001, IATF 16949, ISO 13485, ISO 14001, material declarations, PPAP evidence, RoHS and REACH statements, plus validation summaries for vibration, life and locked-rotor events.
Industries we power

Small motion platforms for exacting OEM applications.

From seat comfort modules to infusion pump drives, our selection path keeps envelope, noise, current and validation requirements visible.

AC

Automotive

Seat adjustment, mirror fold, grille shutter and thermal door actuators with IATF 16949 process control.

View applications -> MD

Medical Devices

Low-noise drives and compact actuators for pumps, diagnostics and assisted-care systems.

View applications -> HA

Home Appliances

Valve, lock, dispenser and cleaning mechanisms where cycle count and acoustic feel matter.

View applications -> HV

HVAC and Building

Damper, vent and small pump modules tuned for steady response and low standby current.

View applications -> RB

Robotics

Compact BLDC and stepper modules for end effectors, grippers and automated access panels.

View applications -> PC

Personal Care

High-volume miniature motor programs for vibration, trimming and pump functions.

View applications ->

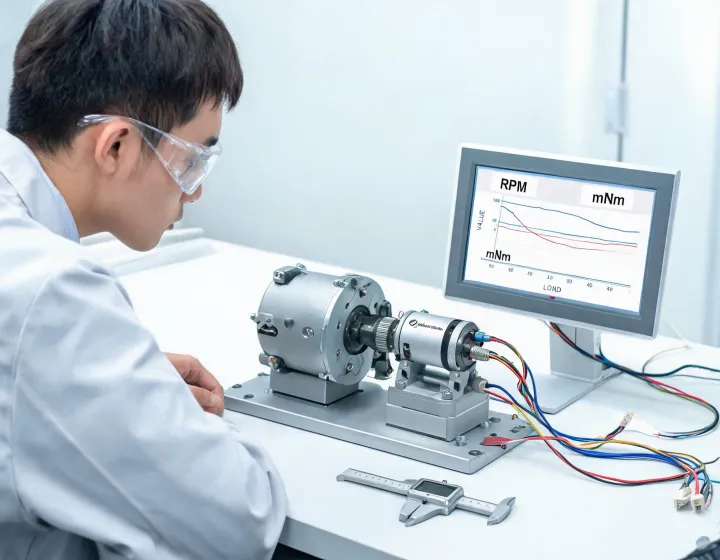

Micro motor validation bench with torque speed curve display
Application-led matching

We translate motor options into sample-ready decisions.

Torque-speed curve selector

Rated point, peak stall and thermal rise are checked against the same profile your system will see during life testing.

4 mm to 80 mm package range

Brushed DC, BLDC, stepper and linear actuator families let teams compare trade-offs before a housing change becomes expensive.

Automotive comfort qualification

Noise, current draw, endurance and supplier quality evidence can be aligned with IATF 16949 programs.

Medical and appliance documentation

ISO 13485 support, material data and production control notes simplify supplier onboarding for regulated designs.

"The useful part was not a thicker catalog. It was a short list of motor and actuator options already screened against our 12 V supply, 38 dBA target and 300,000 cycle validation plan."

Senior platform engineer, global automotive seating supplier

3 step request

Send the duty cycle. Get a practical shortlist.

Step 1: application window. Step 2: envelope and electrical limits. Step 3: sample and documentation target.

1 Application2 Electrical3 Validation

Need a motor curve review before your next design gate?

Share voltage, torque, rpm, stroke and cycle profile. A spec engineer will return a focused Johnson Electric shortlist with risk notes.

Request Spec Engineer ReviewOpen Selection Guide
